Renewable Energies

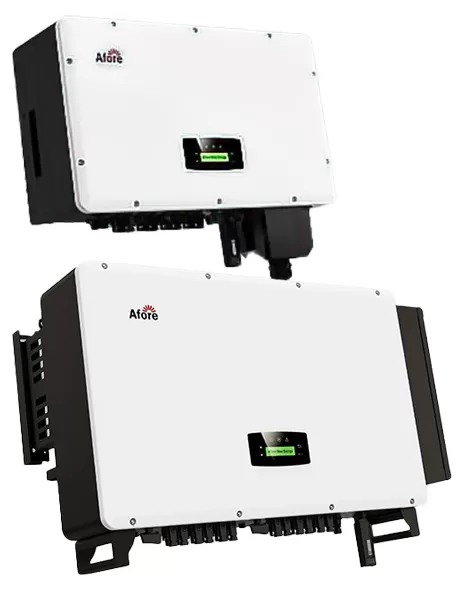

BNT Series Three-Phase String Inverter Solution

Elevate your commercial solar energy system and power plants with the BNT Series Three-Phase String Inverters, meticulously designed for applications ranging from 30 to 60 kW. Our commitment to excellence ensures a durable and efficient solution for your solar energy needs.

Unlock the potential of your commercial solar energy system and power plants with the innovative BNT Series Three-Phase String Inverters. With a robust design and power ranging from 30 to 60 kW at 480 VAC and 60 Hz, these inverters are designed to enhance your solar energy experience.

Key Features:

Durable Aluminum Enclosures: All models feature anodized aluminum enclosures, ensuring greater durability and effective corrosion prevention. Our inverters are built to withstand the test of time.
Efficient Heat Dissipation: Equipped with external inductors, our inverters guarantee efficient heat dissipation, significantly improving reliability and extending lifespan. Ensure that your investment is protected in the long term.
Rigorous Quality Control: Behind the accolades for the NHS and BNT series is a commitment to excellence. Each inverter undergoes a meticulous assembly process and over 50 tests, from R&D to delivery. We leave no room for negligence. Our dedication to quality is reflected in user praise for the NHS and BNT series, backed by a 5-year equipment warranty.
Guaranteed Reliability: To ensure the high quality of each inverter, Afore has dedicated over 50,000 days to testing in the last 3 years, with an investment exceeding 10 million CNY. Quality is not just a goal; it is a commitment.
Innovative Technologies:

IP 68 Cooling Fan
Type II Lightning Protection for DC and AC
Continuous Operation at 1.1 x AC Output
99.9% MPPT Efficiency
Intelligent Temperature Control System
Reactive Power Compensation to Adjust Power Factor
Enhanced Temperature Control: The temperature inside the inverter is effectively reduced by isolating the main heat source. This improvement significantly increases reliability and extends the product's lifespan.

Face challenges head-on, constantly pushing the boundaries to deliver more advanced and efficient products. Join us in contributing to the global green energy movement. Choose BNT Series Three-Phase String Inverters for a sustainable and reliable solar solution.

Cables Solares H1Z2Z2-K - 8 AWG / 10 AWG

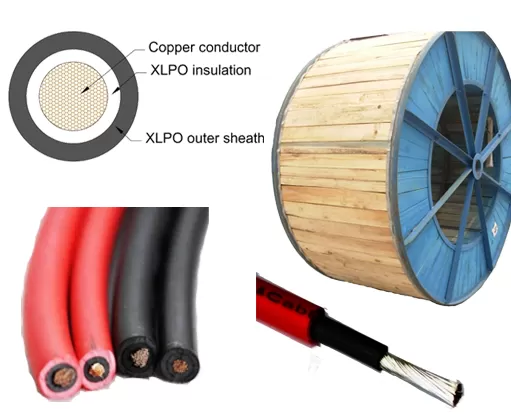

Solar Cable

Application:

The solar cable or photovoltaic (PV) cable is intended for use in photovoltaic power supply systems and similar applications, such as hanging, mobile, fixed, and buried installations in building-covered systems. The cables can be used indoors, outdoors, in explosion-risk areas, in industry, and agriculture. They are suitable for applications in equipment with protective insulation.

Applicable Standards:

EN 50618, 2 Pfg 1169, IEC 62930

Technical Parameters of the Solar Cable

• Nominal cross-section: Type: PV1-F (1.5mm²-35mm²) Type: H1Z2Z2-K (1.5mm²-240mm²)
• Rated voltage: U0/U=0.6/1.0KV AC, 1000/1800VDC
• Number of cores: Single conductor or double core

Features

• Fire resistance: IEC 60332-1
• Smoke emission: IEC 61034; EN 50268-2
• Low fire load: DIN 51900
• Rated voltage: U0/U=600/1000VAC, 1000/1800VDC
• Test voltage: 6500V, 50-60Hz, 5min

• Nominal temperature: -45ºC ~ +125ºC / -40°F ~ +257°F
• Ambient temperature: -40ºC ~ +90ºC / -40°F ~ +194°F
• Maximum short-circuit temperature: 280ºC, +536°F
• Bending radius: >4X for fixed installation, >5X for occasional movement

Cable Construction

• Conductor: Tinned copper wire according to BS EN 60228:2005 cl. 5.
• Insulation: UV-resistant, cross-linkable, halogen-free, flame-retardant compound for core insulation.
• Core identification: Black, Red, or Natural
• Sheath: UV-resistant, cross-linkable, halogen-free, flame-retardant compound for the sheath over the insulation.
• Cable color: Black, Red

Combiner Boxes

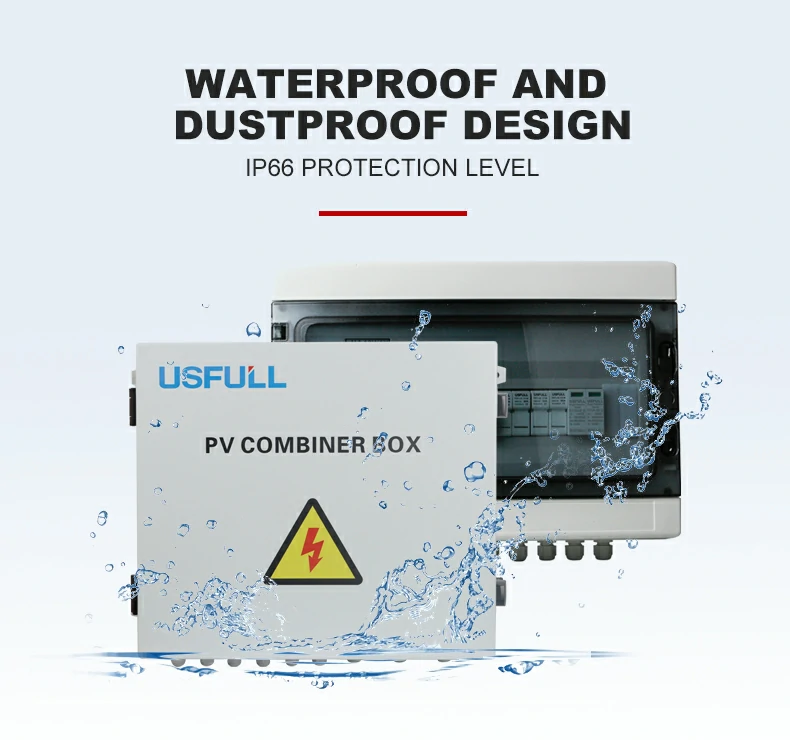

The solar combiner box

The FUCB series is waterproof, dustproof, and features overload protection, lightning protection, overcurrent protection, among others. The combiner box meets the requirements for prolonged use in both outdoor and indoor situations.

The solar combiner box from the FUCB series offers overload protection, lightning protection, overcurrent protection, and more. The number of direct current (DC) inputs in our solar combiner box ranges from 1 string to 24 strings, depending on project requirements. The combiner box meets the requirements for prolonged and uninterrupted use outdoors and indoors.

The combiner box is exquisite, durable, and convenient to install, with an IP 65/66 protection level, waterproof and dustproof, meeting the requirements for prolonged outdoor use.

The solar combiner box is equipped with a surge protection device, circuit breaker, isolation switch, and fuses to provide isolation, leakage protection, and grounding protection, ensuring safety during maintenance and inspection, and reducing the extent of power outages when the photovoltaic system fails.

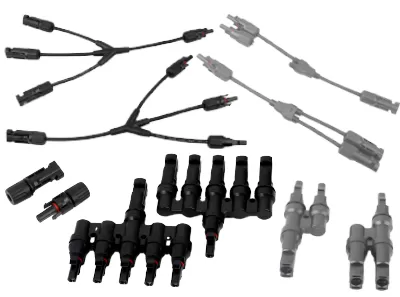

PV Connectors for Solar Systems

The connectors are designed for a wide range of solar systems, from small charge controllers to large inverter systems. We offer various types of connectors to meet your needs.

Specifications:

Insulation Material: PPO
Nominal Current: 20A (4mm²)
Nominal Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature Range: -40℃ to +90℃
Protection Rating: IP67 (waterproof)
Flame Class: UL94-V0
Safety Rating: Class II
Compatible Cable: 1.5mm² to 6mm²

These connectors ensure secure and efficient connections between solar panels and inverters. With a self-locking structure, durable PPO plastic, and a thick copper core for excellent conductivity, they provide a strong seal and waterproof protection.

For any inquiries or questions, please feel free to contact us!

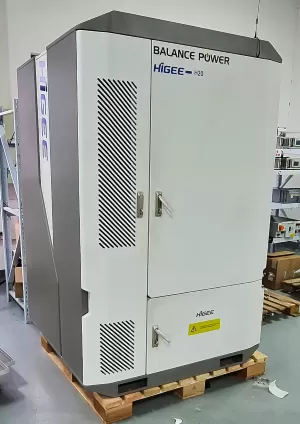

Lithium Battery C&I ESS Solution

Our energy system is an innovative and advanced solution that offers a range of benefits and functionalities designed to meet the most demanding energy needs. Below are the main features of our product:

Features:

- Increasing Dynamic Capacity
- Photovoltaic Energy System
- Load Shifting
- Microgrid
- Off-Grid Backup Power
- Flexible and easy to use
- Safe and reliable LFP cells, long lifespan
- All-in-one, highly integrated into a single unit
- Internal modular design to support rapid expansion, up to 10 units in parallel
- Dynamic operation with real-time energy management
- Comprehensive protection with high-density aerosol fire protection
- Power/Energy rating: 30 and 100 kW (92 and 202 kWh)
- DC Voltage: 672-876 V and 739-963 V
- Nominal AC Current: 45A and 152 A

All-in-one, highly integrated into a single unit
Internal modular design to support rapid expansion, up to 10 units in parallel
Dynamic operation with real-time energy management
Comprehensive protection with high-density aerosol fire protection
Power/Energy rating: 30 and 100 kW (92 and 202 kWh)
DC Voltage: 672-876 V and 739-963 V
Nominal AC Current: 45A and 152 A

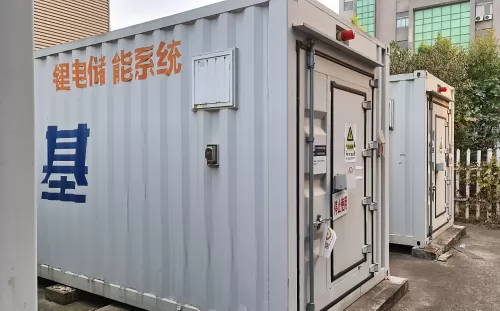

Battery Storage Solution

In an era where energy efficiency and reliability are essential, our Energy Storage System Solution emerges as the answer to your changing energy needs. This comprehensive solution seamlessly integrates cutting-edge technology and innovative design to provide a robust and sustainable approach to energy storage.

Key Features:

1. Efficient Energy Storage: Our system ensures the efficient storage of excess energy, allowing you to harness energy when you need it most.

2. Reliable Power Supply: Experience uninterrupted energy supply with our reliable energy storage solution, guaranteeing a constant and stable source of power.

3. Smart Technology Integration: Leverage the power of smart technology with our system, optimizing energy usage and providing real-time monitoring for better control.

4. Scalability: Our solution is designed to grow with your energy demands, offering a scalable and adaptable energy storage infrastructure.

5. Contribution to Green Energy: Contribute to the global movement towards sustainable energy practices by incorporating our Energy Storage System into your setup.

6. Long Lifespan: Built with durability in mind, our solution is designed for a long lifespan, providing a lasting and cost-effective investment in energy storage.

Empower your energy independence with our Energy Storage System Solution, laying the foundation for a greener and more reliable energy future.

Simplified List of Components in a Battery Energy Storage System:

1. Batteries: Store electricity.
2. Inverter: Converts stored energy into usable electricity.
3. Charge Controller: Manages charging to protect the batteries.
4. Energy Management System: Optimizes the use and storage of energy.
5. Thermal Management System: Maintains batteries at the appropriate temperature.*
6. Monitoring System: Displays how the system is functioning.
7. Enclosure/Cabinet: Protects and houses the components.
8. Safety Features: Prevents potential hazards.
9. Disconnect Switch: Shuts down the system when necessary.
10. Grid Connection: Connects the system to the electrical grid.
11. Communication Interfaces: Allows for remote monitoring and control.
12. Auxiliary Power Supply: Provides power to the control electronics.

*Innovation: Thermal management can be achieved through liquid cooling.

All these components work together to create an efficient and safe Energy Storage System.
